Positioning of magnetic markers - 3rd and final design

Back

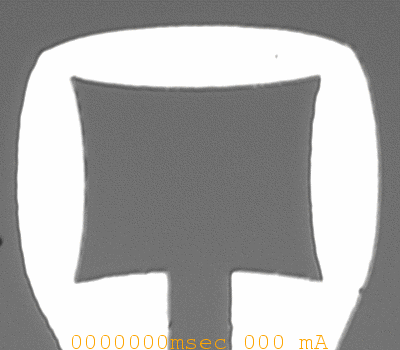

Sample: TMR4-Line_A
Beads : Micromod, Sicastar-M plain 1,5µm (1/5000: 5µg/ml)
Video : 1-24_A
Area : 128,4 x 112,4 µm (400x350+169+237)

Single markers move into the top corners of the conducting line. The actual current is given in the video.

  • 10 - 11sec: Bead moves into the top right corner
  • 41 - 42sec: Bead moves into the top left corner

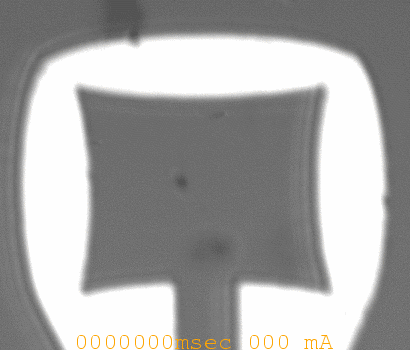

Sample: TMR4-Line_A
Beads : Micromod, Sicastar-M plain 1,5µm (1/5000: 5µg/ml)
Video : 22-23_A
Area : 131,6 x 112,4 µm (410x350+267+220)

The markers are collected in the corners of the structure. The current is given in the video.

  • 13 - 14sec: Bead agglutination moves into the bottom right corner
  • 27 - 28sec: Bead moves into the top left corner
  • 64 - 65sec: Another bead moves into the bottom right corner
  • 75 - 76sec: Bead moves into the top right corner
  • 105 - 106sec: Another bead moves into the top left corner
