Positioning of magnetic markers - 2nd design

Back

Sample: TMR2-Line_A
Beads : Micromod, Sicastar-M plain 1,5µm (1/5000: 5µg/ml)

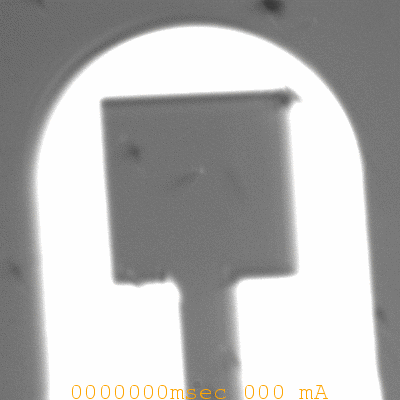

Video : 22-23_A
Area : 128,4 x 128,4 µm (400x400+378+212)

The markers are only collected in the top corners of the conducting line (the actual current is given in the picture). The local maxima at the bottom seem to be too weak.

  • 3 - 4sec: Bead agglutination moves into the top right corner
  • 7 - 8sec: Bead moves into the top left corner
